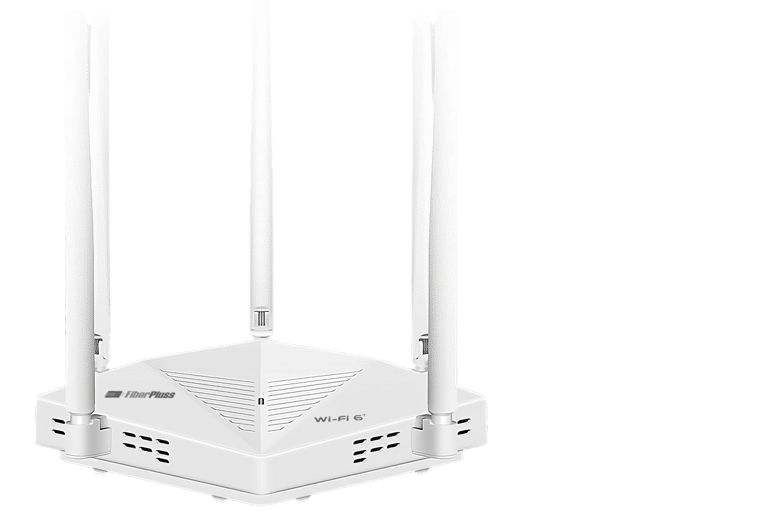

AX3000 PRO Gigabit

Dual Band Wifi 6 Router EasyMesh

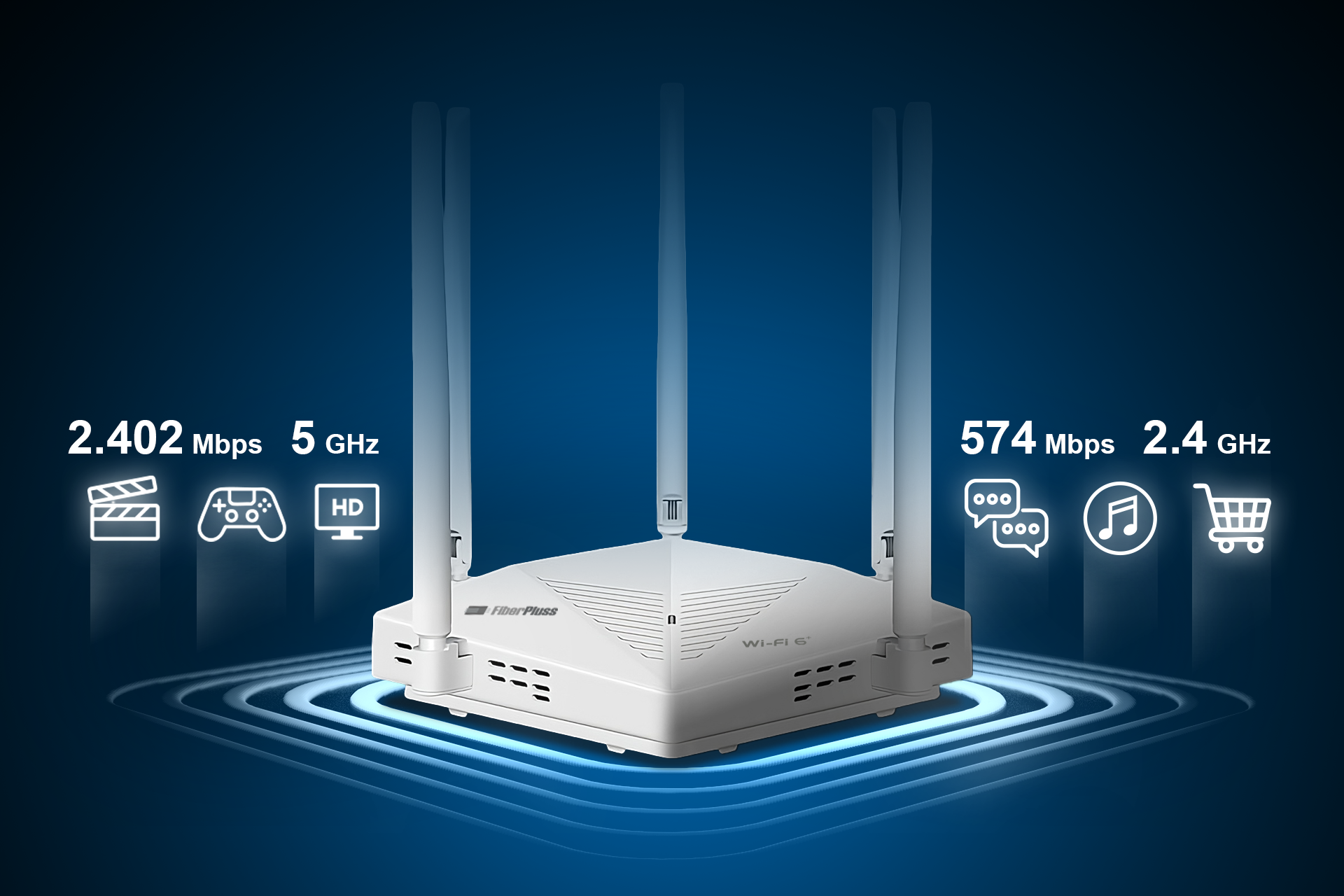

• Ultra-Fast WiFi 6 Speeds – Enjoy seamless home entertainment and high-speed connectivity reaching up to 3000 Mbps (2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band), powered by a dual-core 1.3GHz CPU and MT7981BA+MT7976CN+MT7531AE chipset.

• Broader Coverage – Equipped with five 5dBi high-gain antennas and Beamforming technology to deliver strong, stable signals in every corner of large apartments, duplexes, and small offices.

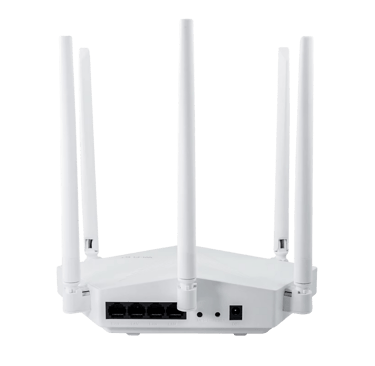

• Full Gigabit Ports – Includes 1× Gigabit WAN and 3× Gigabit LAN ports (10/100/1000M, Auto MDI/MDIX) to maximize data transfer speeds and fully utilize high-speed internet connections.

• Higher Network Efficiency – Advanced MU-MIMO and OFDMA technologies allow simultaneous data transmission across multiple channels, reducing latency and increasing throughput for every connected device.

• EasyMesh Networking – Supports EasyMesh for seamless WiFi coverage across multiple rooms and floors, with smooth roaming between nodes and frequency bands.

• Comprehensive Security – Features WPA3-SAE, WPA2-PSK, WPA/WPA2-PSK, and MAC address filtering to safeguard your network and personal data.

• Smart Network Management – Access Web-based management, firmware updates, QoS, VPN, Parental Controls, and Guest Network functions for full control and safety.

• IPTV and IPv6 Supported – Compatible with IGMP Proxy/Snooping, Bridge, Tag VLAN, and supports IPv6 for the latest internet standards and optimized IPTV streaming.

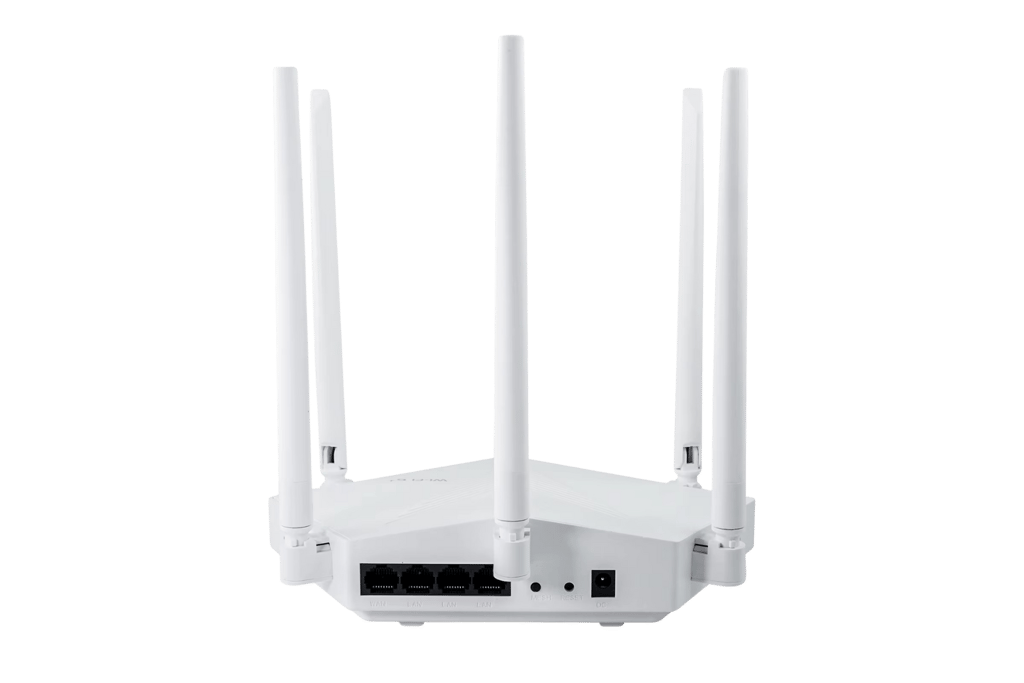

Full Gigabit Ports

1x Gigabit WAN and 3x Gigabit LAN Ports

(10/100/1000M, Auto/MDI/MDIX) to maximize data transfer speeds and fully utilize high-speed internet connections. Higher Network Efficiency, advanced MU-MIMO and OFDMA technologies allow simultaneous data transmission across multiple channels, reducing latency and increasing throughput for every connected device. Supports EasyMesh for seamless WiFi coverage across multiple rooms and floors, with smooth roaming between nodes and frequency bands.

Comprehensive Security

1x Gigabit WAN and 3x Gigabit LAN Ports

WPA3 is the latest Wi-Fi security standard, offering protection by enhancing encryption and simplifying secure network connections for users. It provides more robust security for both personal and public networks through stronger encryption, protection against password-cracking attacks, and automatic encryption of open networks. Key improvements include individually encrypted connections and a secure handshake process that ensures data privacy even if the password is compromised.

Smart Network Management

Web Based Management

Firmware updates, QoS, VPN, Parental Controls, and Guest Network funtions for full control and safety.

IPTV and IPv6 Supported

Compatible with IGPM Proxy/Snooping, Bridge, Tag VLAN, and supports IPv6 for the latest internet standards and optimized IPTV streaming.

FEATURES

• Provides 1 10/100M /1000M Ethernet (WAN) interface.

• Provides 3 10/100M /1000M adaptive Ethernet (LAN) interfaces and supports automatic MDI / MDIX.

• Supports 2.4G and 5G dual band.

• Support WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, WPA3-SAE, WPA2-PSK/WPA3-SAE encryption and security mechanisms to ensure the security of data transmitted in wireless networks.

• Five external non-detachable high-gain antennas.

• Support SSID broadcast control to effectively prevent SSID broadcast leakage.

• Built-in Network Address Translation (NAT) function.

• Built-in DHCP server.

SPECIFICATIONS

• Protocol Standards:

IEEE 802.11b、IEEE 802.11g、IEEE 802.11a、IEEE 802.11n、IEEE 802.11ac 、IEEE 802.11ax、 IEEE 802.3、IEEE 802.3u、IEEE 802.3x.

• Interface:

1 个10/100M/1000M WAN ports, Support Auto MDI/MDIX.

3 个10/100M/1000M LAN ports, Support Auto MDI/MDIX.

• Button MESH: (Press 1 second).

• Reset: (Press 5 second).

• LED Three-color light design: green, red, blue.

• Five Antennas External omnidirectional 5dbi gain non-detachable antenna.

• Power DC: 12V/1A.
